A60 and H60 Fire Rated Door
A60 and H60 Fire Rated Door
Designed for high-risk environments, our A60 and H60 Fire Rated Doors provide exceptional fire resistance, ensuring safety and structural integrity under extreme conditions. These fire-rated solutions are engineered to withstand different fire exposure scenarios based on the required safety standards.
- A60 Fire Rated Doors are tested using the ISO standard fire temperature curve, simulating cellulosic fires commonly found in buildings, marine applications, and industrial facilities. These doors effectively prevent fire spread while maintaining their integrity under intense heat conditions.
- H60 Fire Rated Doors are built to endure more severe environments and tested against the hydrocarbon fire curve, which represents fires fuelled by oil, gas, and other hydrocarbons. These doors are subjected to higher temperatures for extended durations, making them ideal for offshore platforms, refineries, and petrochemical industries.
Each fire-rated door is meticulously designed to sustain its fire resistance and structural performance under the specified fire conditions. Whether for commercial, industrial, or offshore applications, our A60 and H60 doors provide uncompromising safety, reliability, and durability where fire protection is critical.
Products

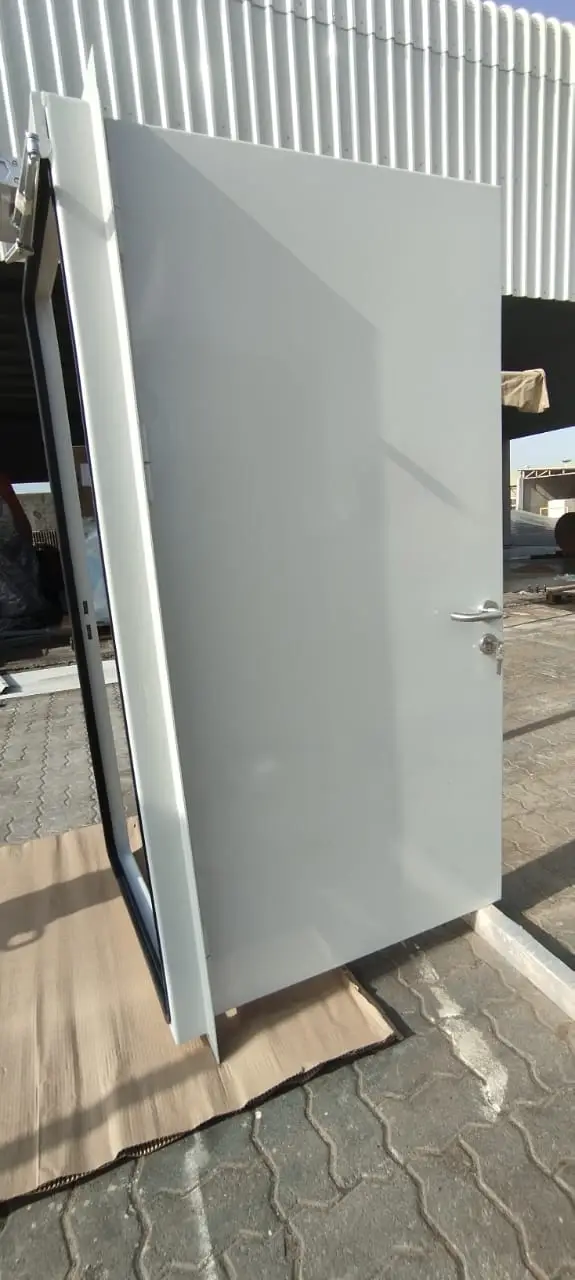

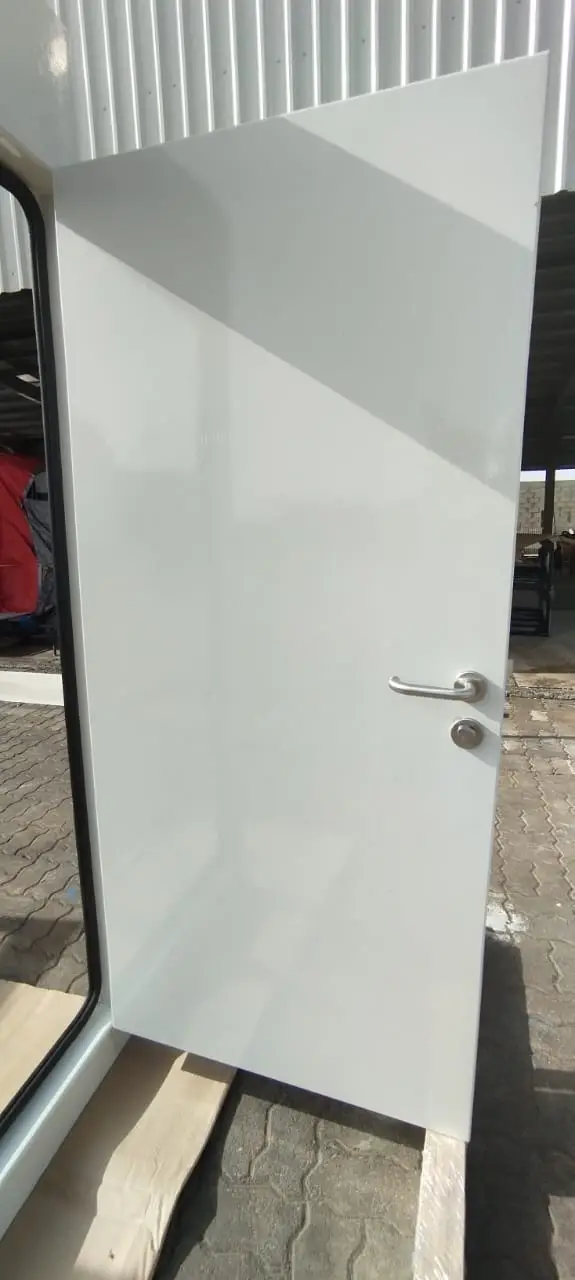

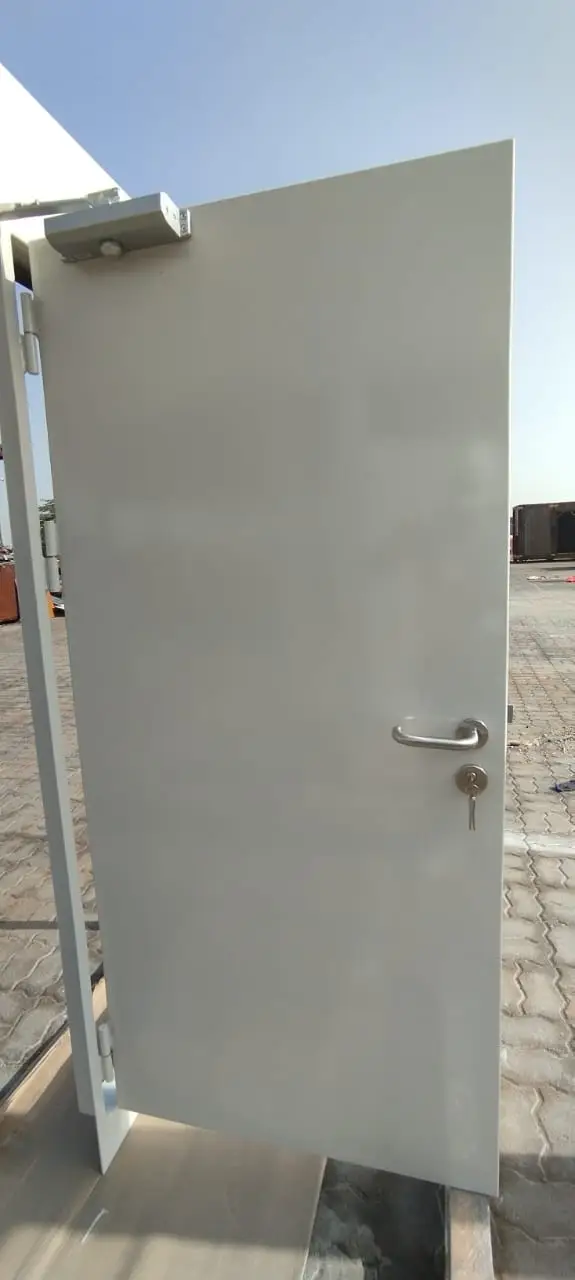

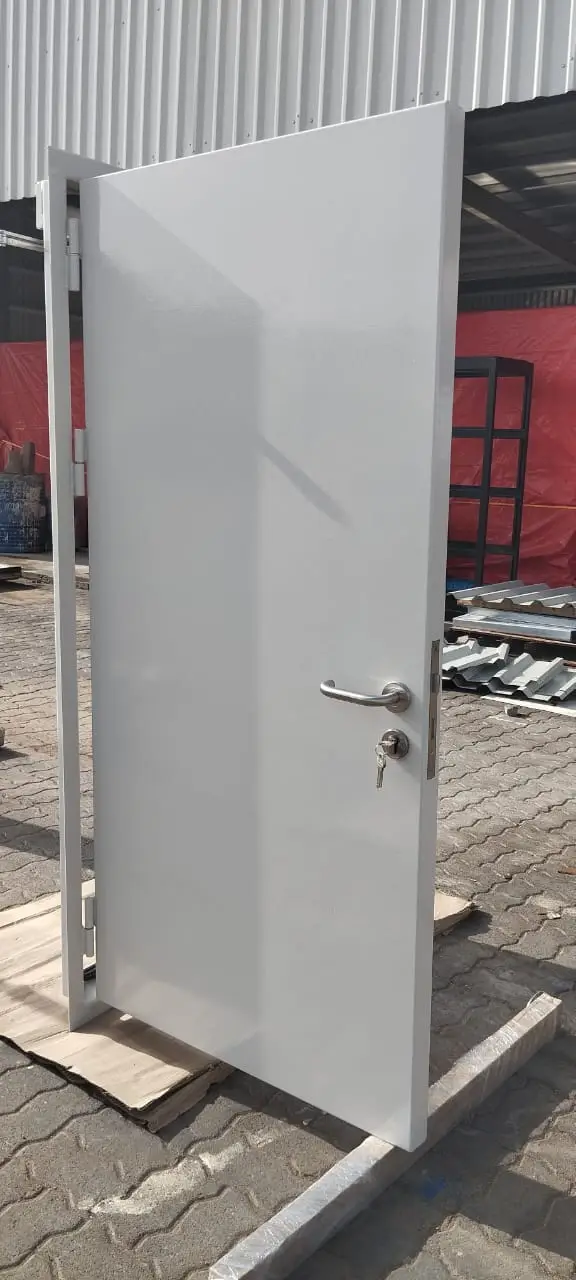

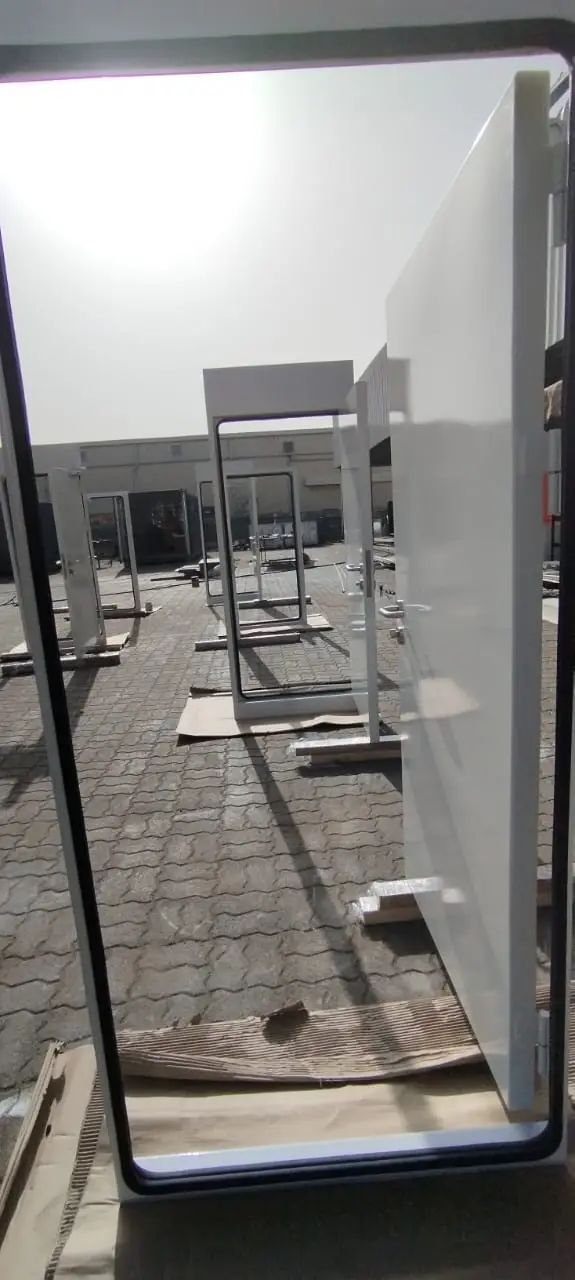

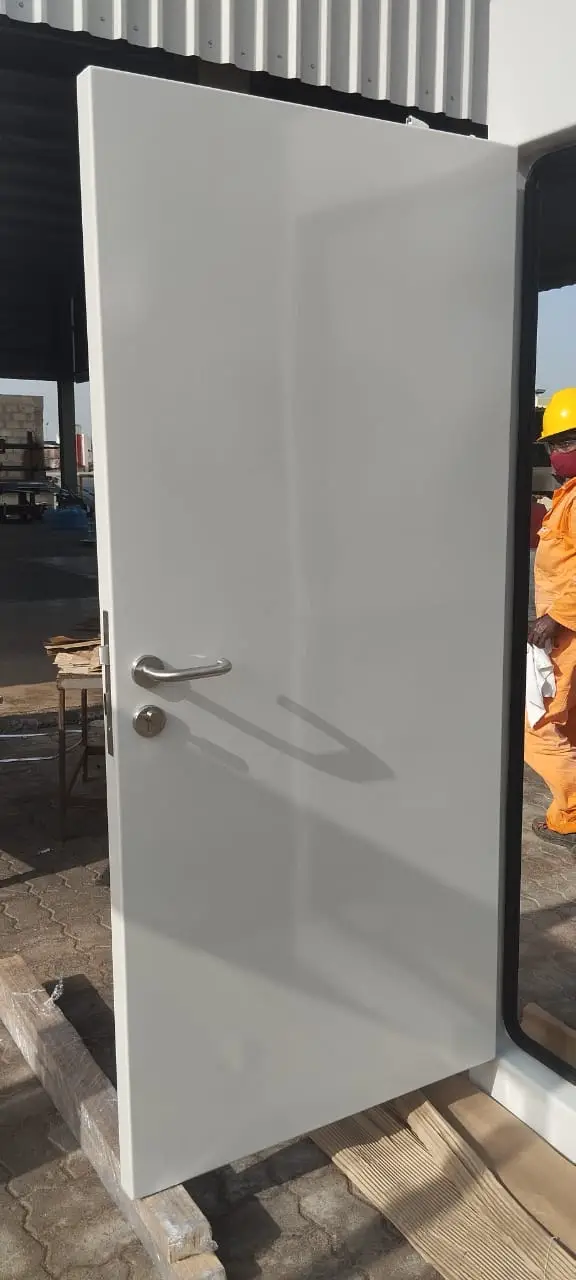

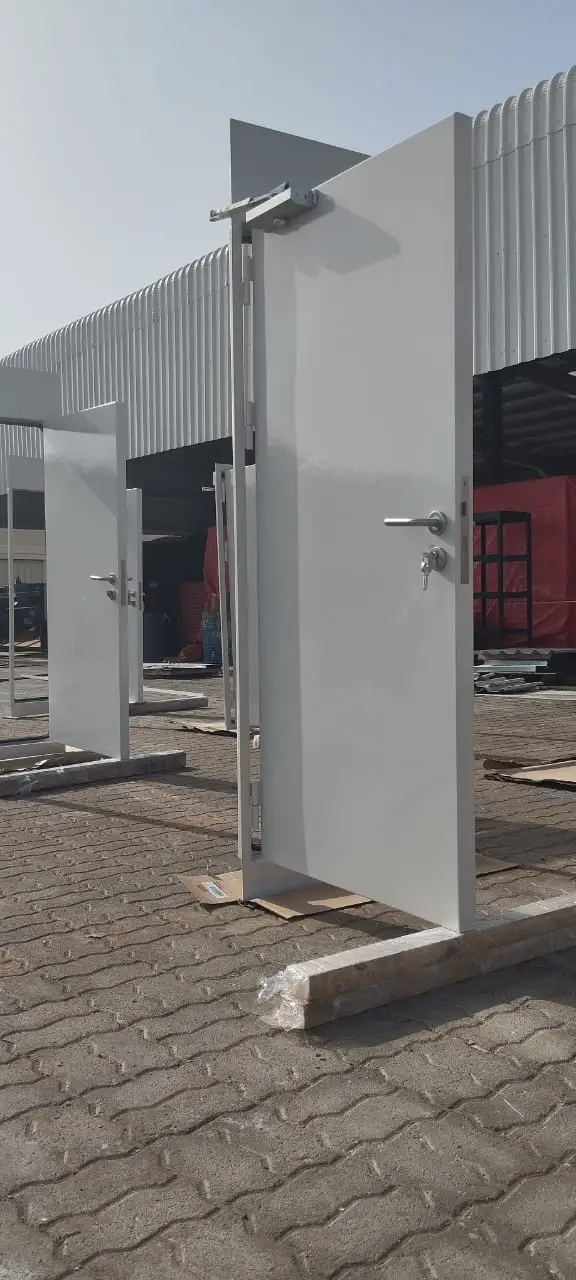

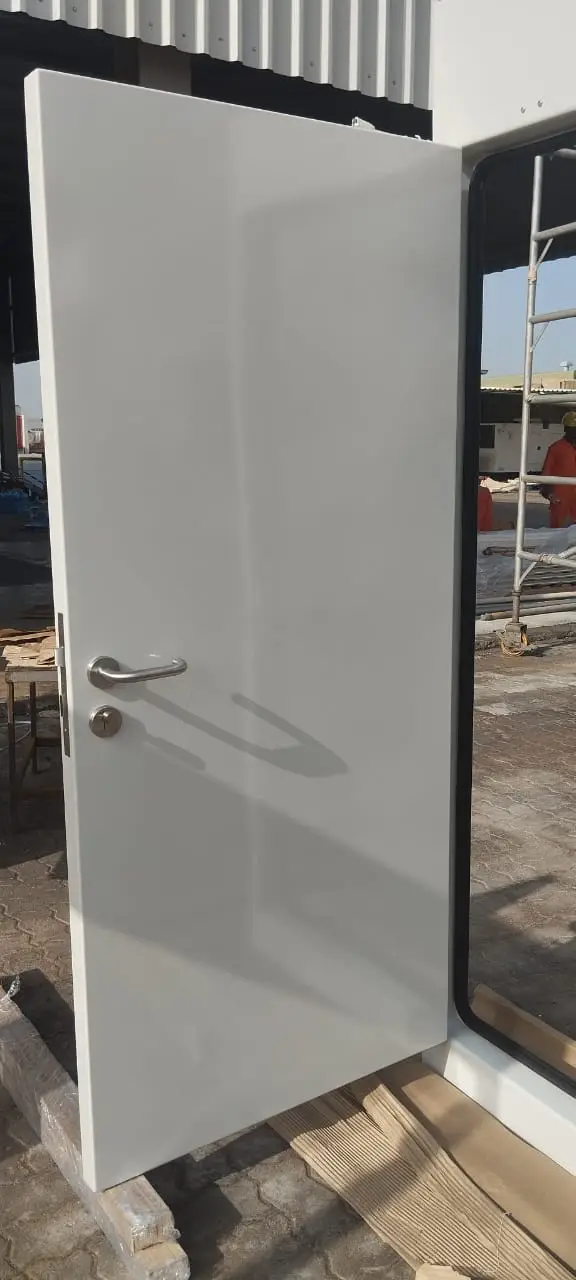

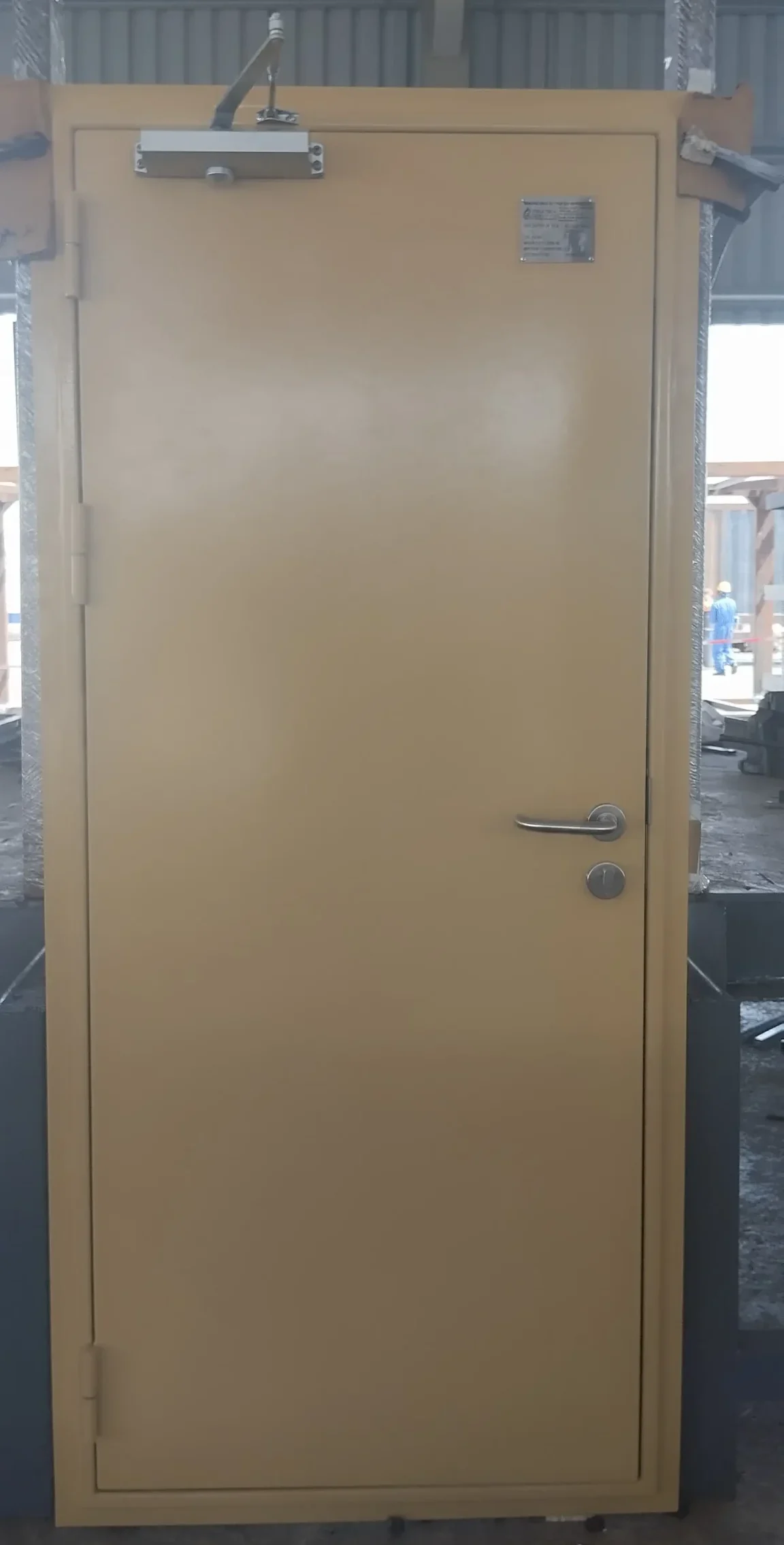

A60 Fire Rated Door
Built for durability and safety, our A60 Fire Rated Door is designed for offshore platforms, offering superior fire resistance and weather protection. Constructed from 2mm mild steel or stainless steel, it provides excellent structural integrity and corrosion resistance. The J-section frame is equipped with a weather-tight gasket to prevent water and air infiltration, ensuring long-term durability in harsh marine environments. Secured with four heavy-duty welded hinges, the door guarantees stability and reliability. A closed-cell type weather-tight seal further reinforces protection against external elements. Designed for both safety and ease of use, the door features a robust stainless steel mortise latch for secure locking, along with heavy-duty tubular stainless steel handles that offer a firm and comfortable grip.
Products

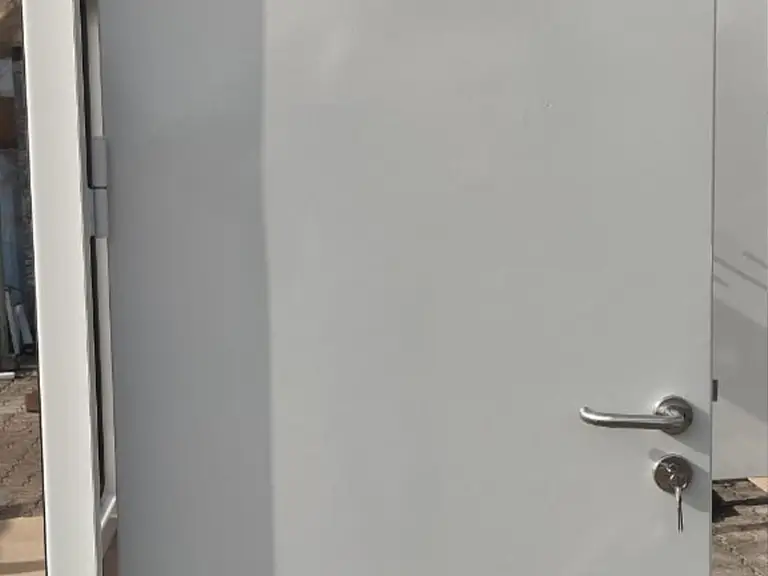

H60 Fire Rated Door
Engineered for extreme fire protection, our H60 Fire Rated Door is built to withstand high-temperature hydrocarbon fires, ensuring maximum safety in hazardous environments. Constructed with 2mm mild steel door skins and filled with superwool insulation, it offers exceptional fire resistance. The robust 4mm mild steel Z-section frame enhances durability, while five heavy-duty lift-off hinges with grease nipples ensure smooth operation and longevity. Featuring a three-point stainless steel latching system on the inside face and an external stainless steel lever handle, this door guarantees security and ease of use. A high-performance LCN heavy-duty door closer enhances controlled closure, while weather seals and runners on both sides provide additional protection against external elements. Designed to endure up to 1.0 bar pressure, this door delivers superior fire safety and reliability for high-risk industrial and offshore settings.

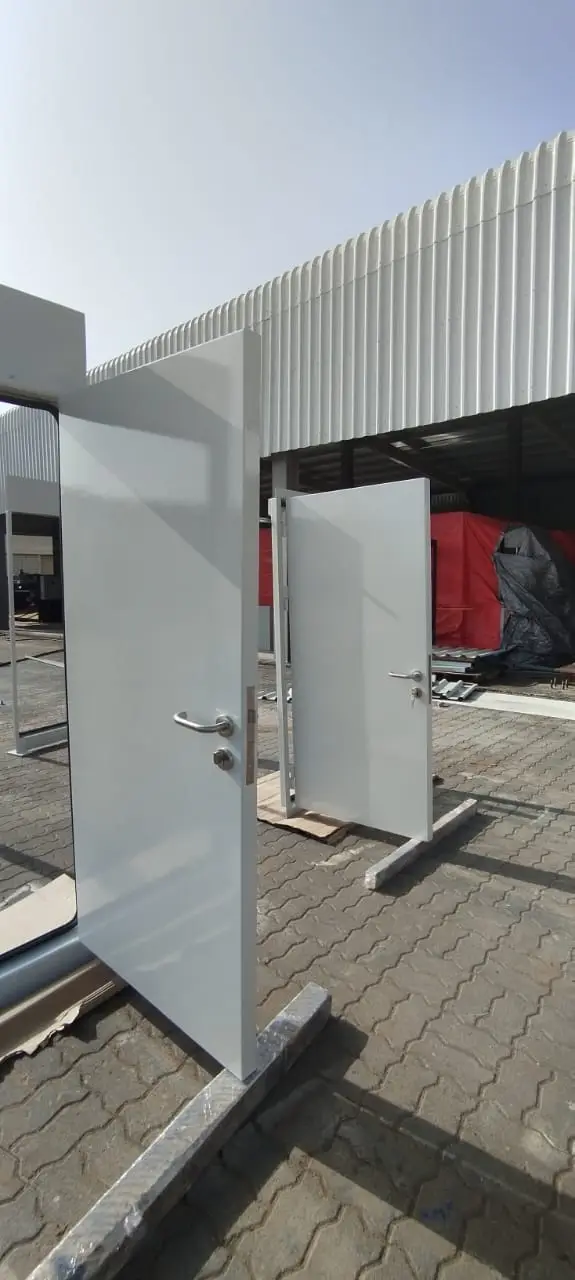

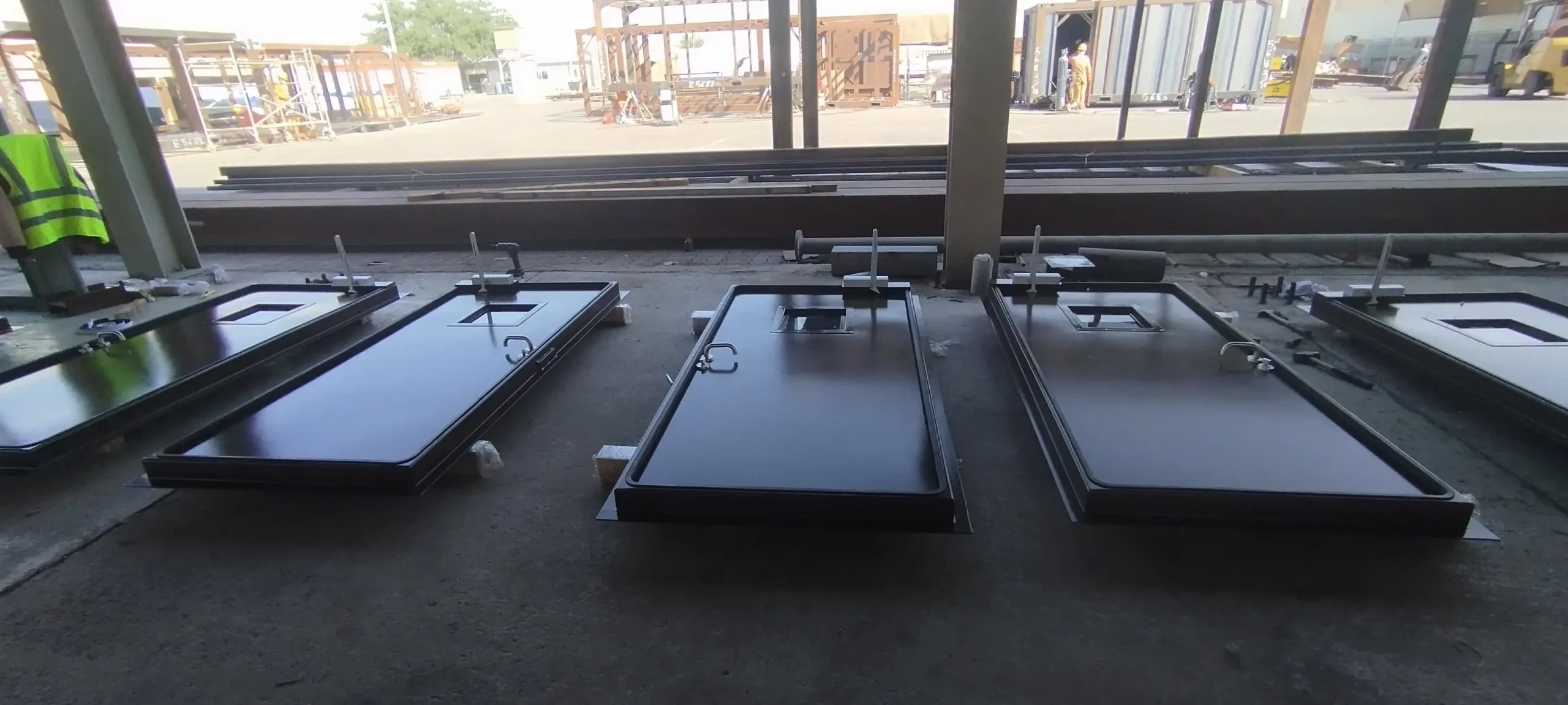

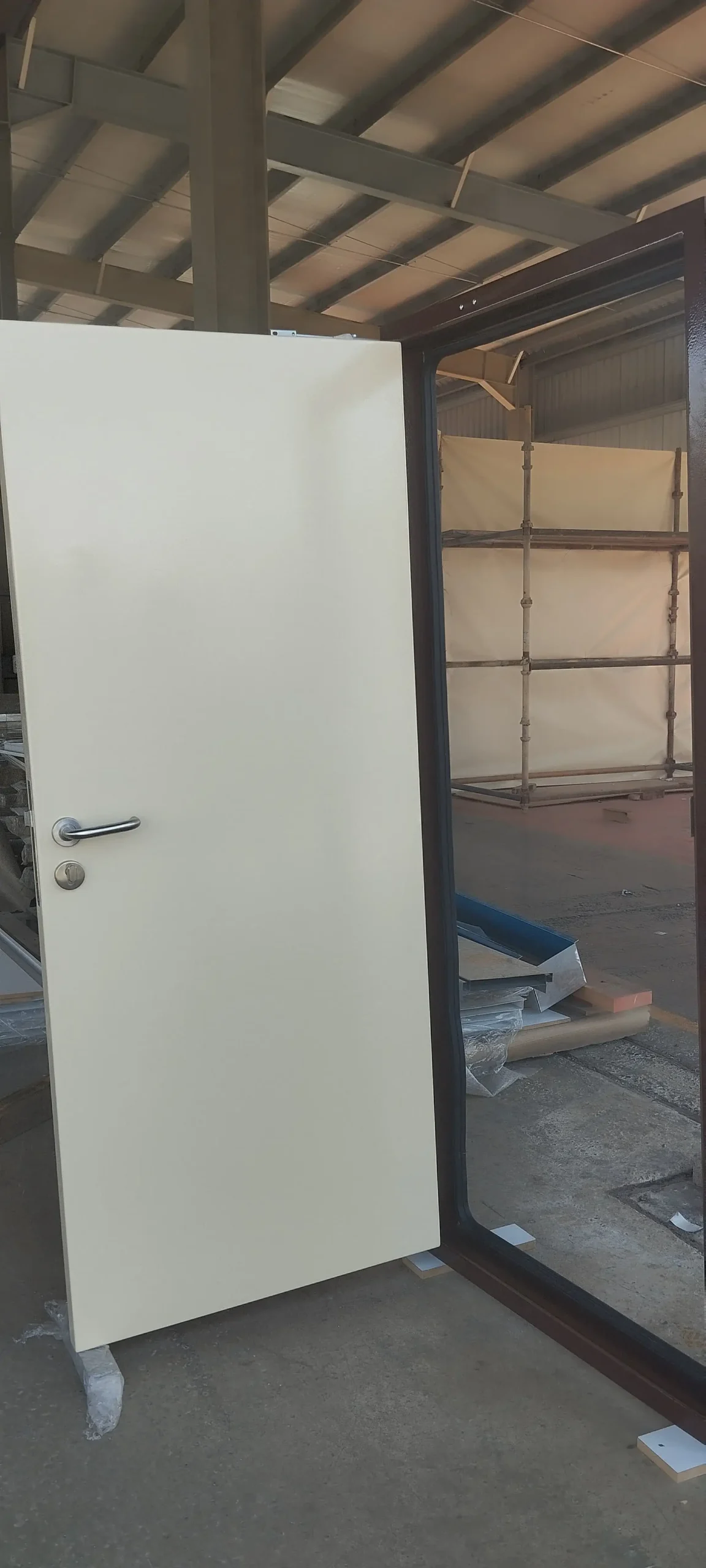

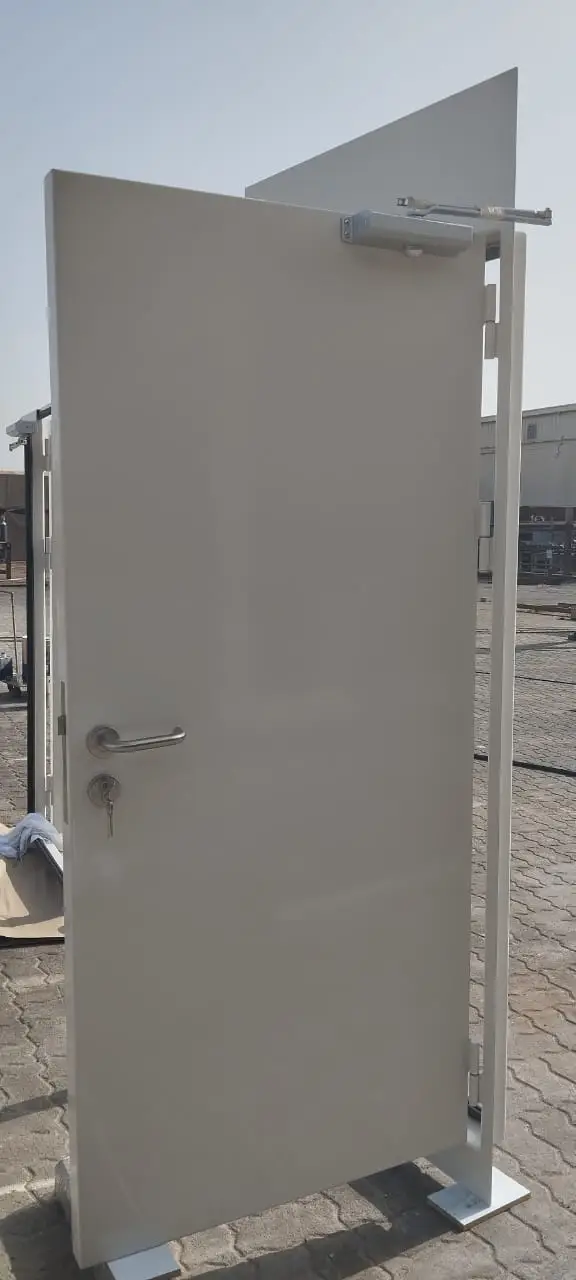

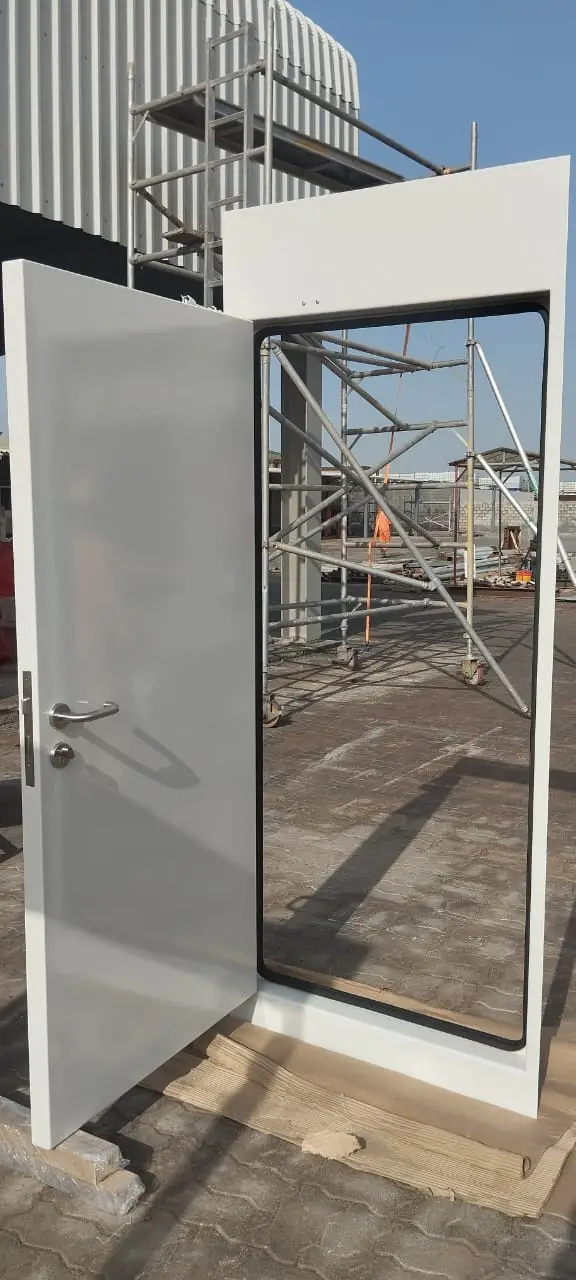

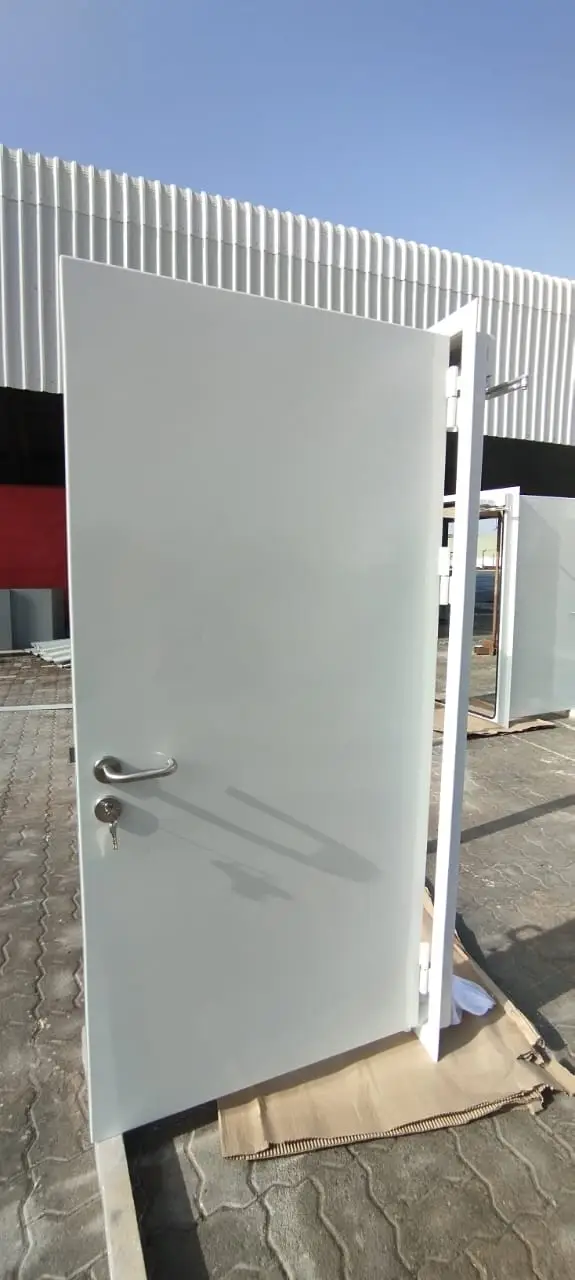

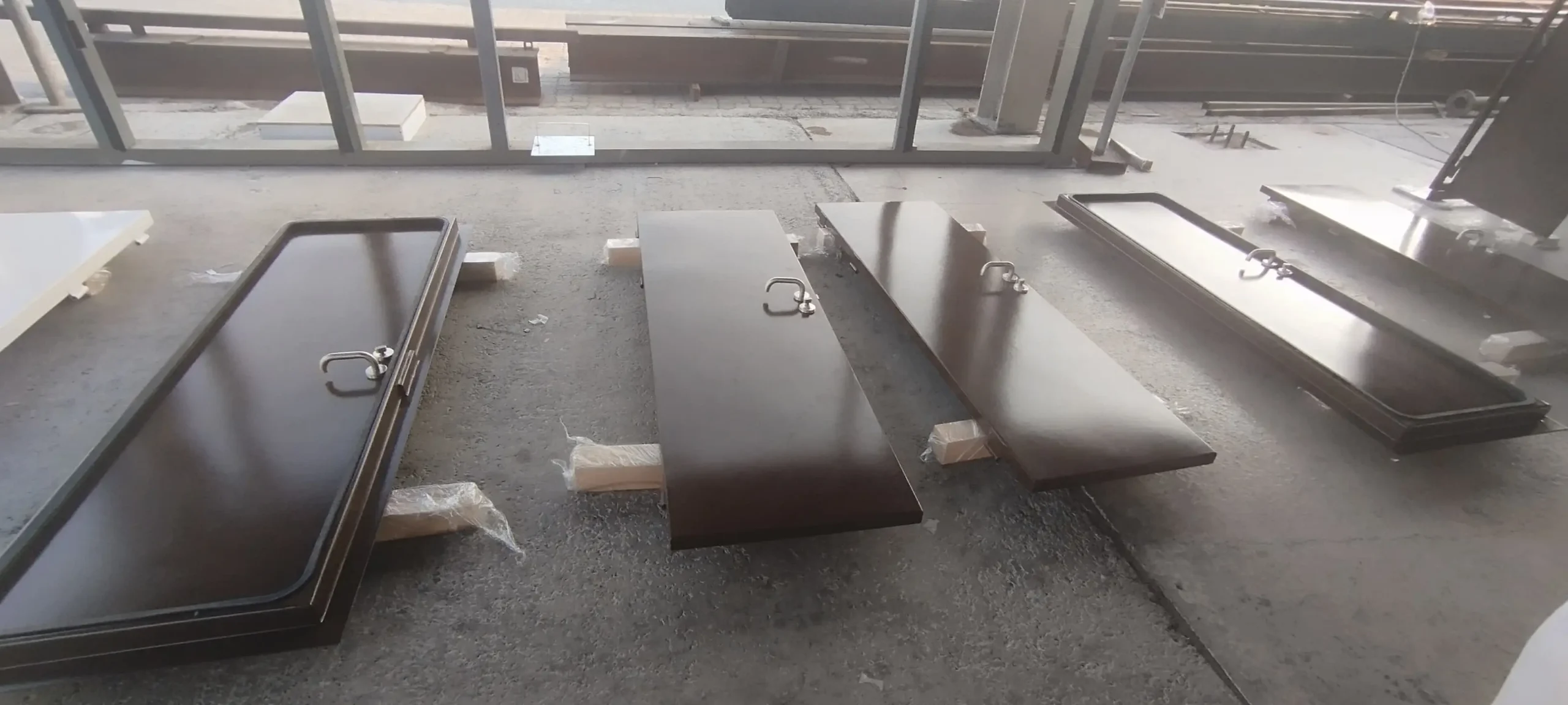

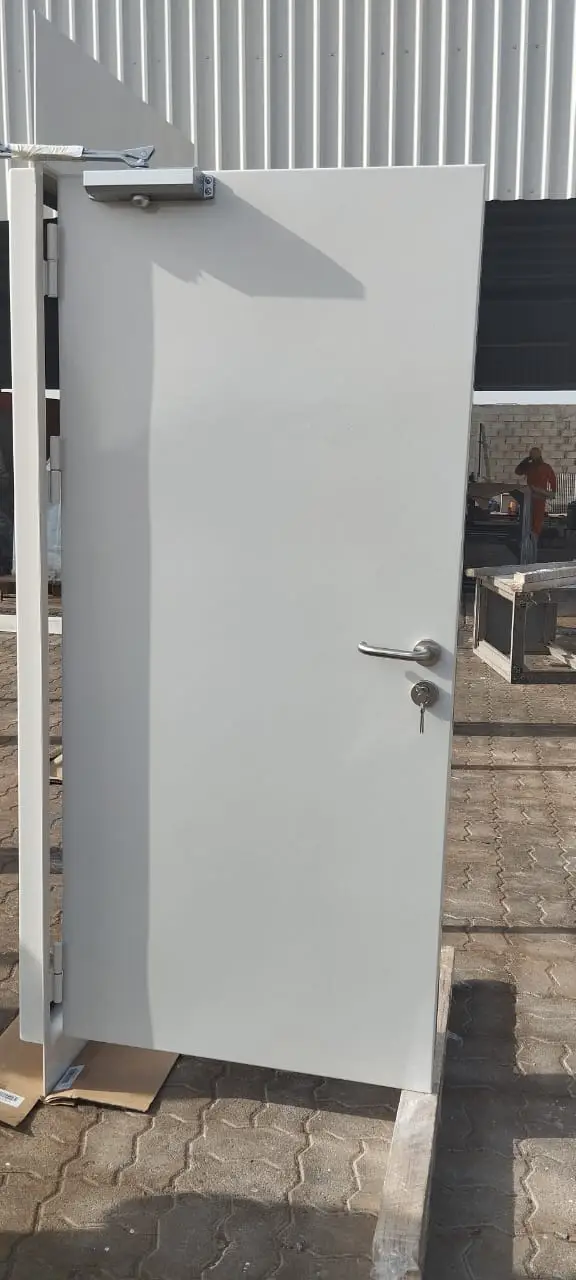

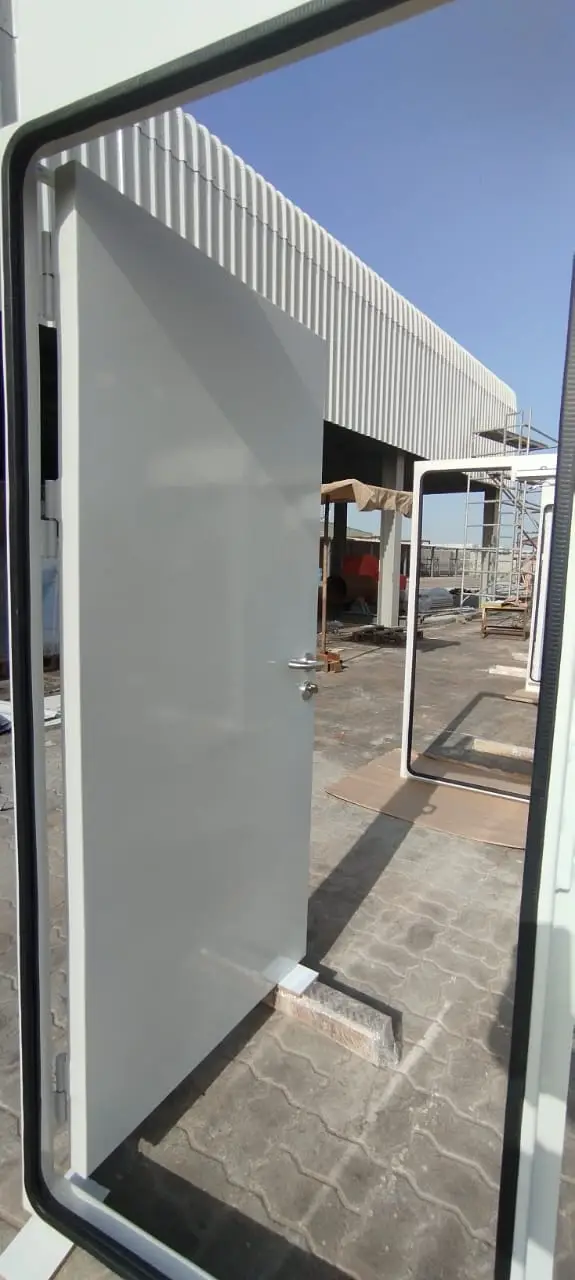

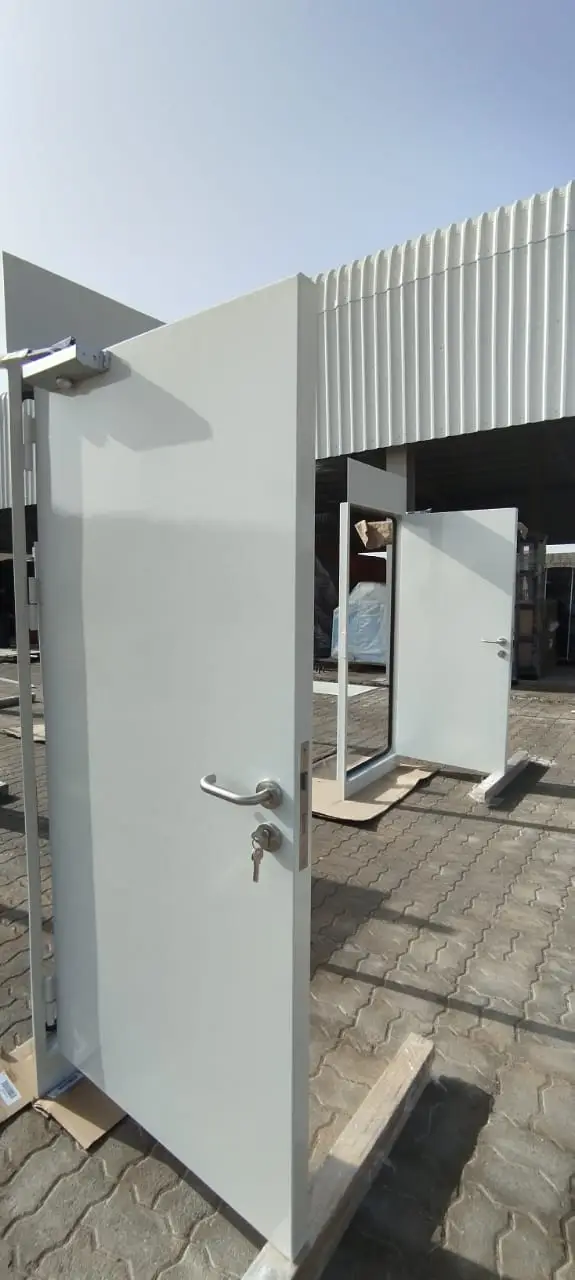

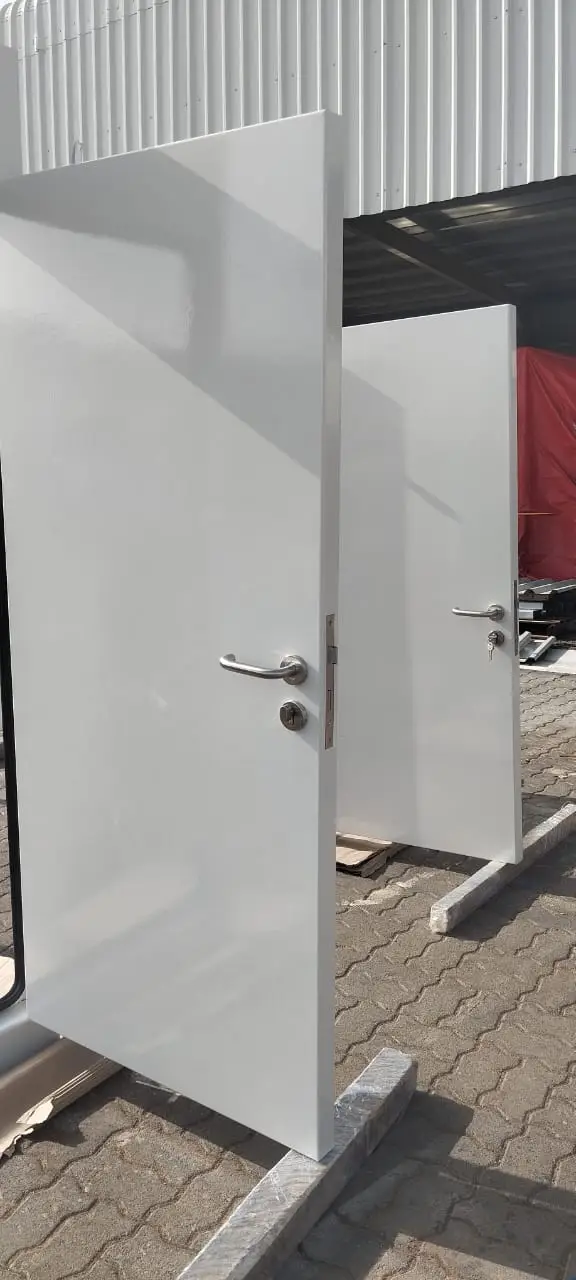

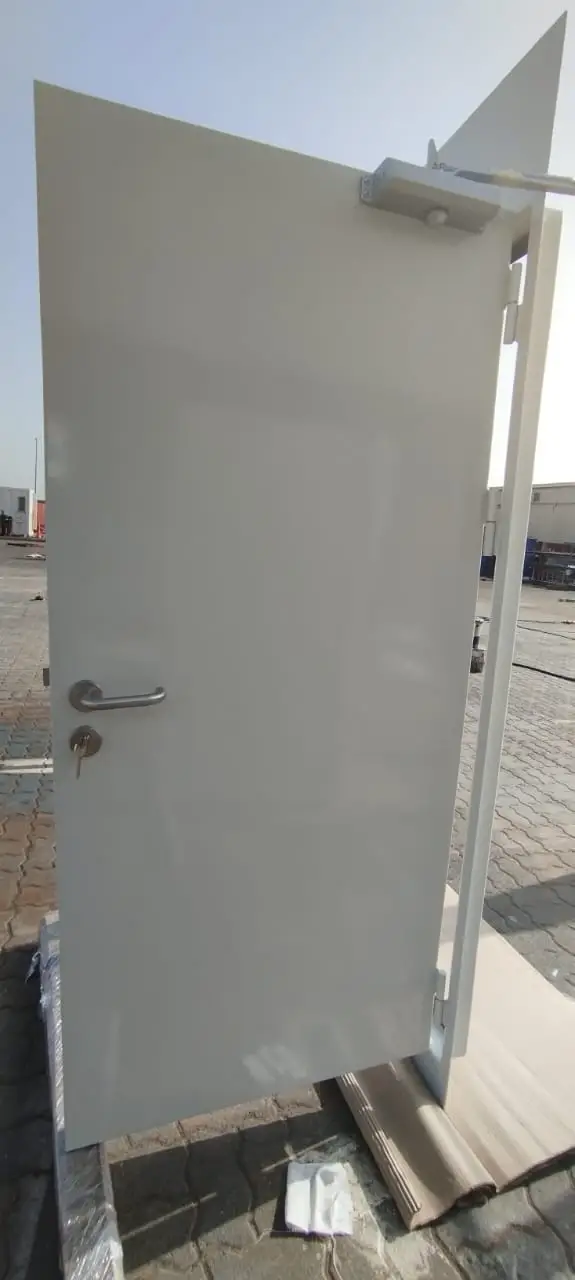

Product Gallery
